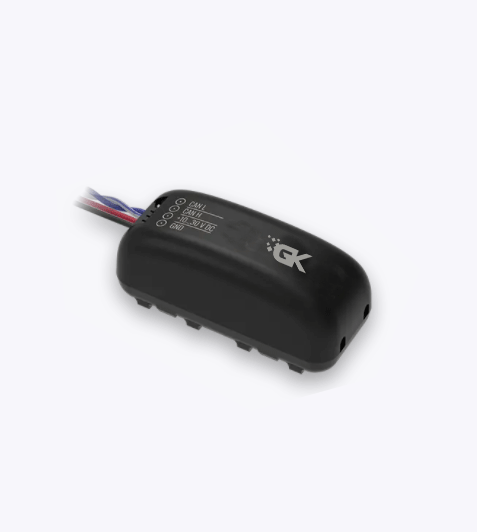

GK ECAN01
BENEFITS OF ECAN01
Contactless connection to the CAN bus of the vehicle! It reads can bus data through the isolation of wires without damaging them and forwards signals to tracking device.
Description
| TECHNICAL DATA | |
| Supported by | LV-CAN200, ALL-CAN300, FMB64X, FMC64X, FMM64X series and FMB140 |
| Input voltage range | 10 – 30 V DC |
| Power consumption | At 12V < 1,2 mA (Standby) At 12V < 6,9 mA (Working) |
| Operating temperature range | -25°C to +85°C |
| Operating humidity | Max 85 % non-condensing |
| Features | Contactless CAN reading Warranty friendly CAN-BUS speed up to 1000 kb/s |
| Dimensions | 39.8 x 18 x 16.7 mm (L x W x H) |
