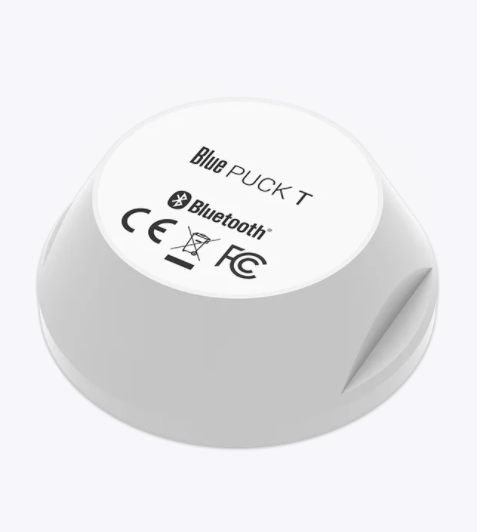

BLUE PUCK T
Perfect monitoring solution for a wide use in the cold chain logistics, freezers, refrigerators and other temperature sensitive cases. Sensor uses advanced Bluetooth 4.0 LE technology to get data from long distance. It can work from internal battery up to 19 years! Its NFC chip brings flexibility and comfort in programming and proximity identification. Collected temperature information of the surrounding environment within 500 meters is transferred to RUTX series device, which can be send to your server or IoT platform via MQTT protocol. Router with BLE technology has possibility to support at least 200 temperature sensors at the same time
Description
| TECHNICAL DATA | |
| Battery | Lifecycle up to 19 years |
| Bluetooth | 2,4 GHz – Bluetooth Low Energy 4.0/4.2 |
| NFC | Supported |
| Dimensions | Ø 57mm base – Thickness 20mm |
| Weight | 42 g |
| Operating temperature | -40°C to +85°C |
| Ingress Protection Rating | IP68 (Waterproof) |
| Measuring range | -40°C to +85°C |
| Accuracy | ±0,25°C from -0°C to -65°C, ±0.5°C from -40°C to 85°C |
| Transmission range | Up to 500 meters (open field) |
| Transmission period | 0,1 to 10 second (programmable) |
| Regulatory | CE (Europe): EN 300 328/EN 300 330, EN 301 489, EN 62311, EN 62368 FCC (USA): FCC PART 15 ISED (Canada): RSS-247/ICES-003 RoHS certified |
