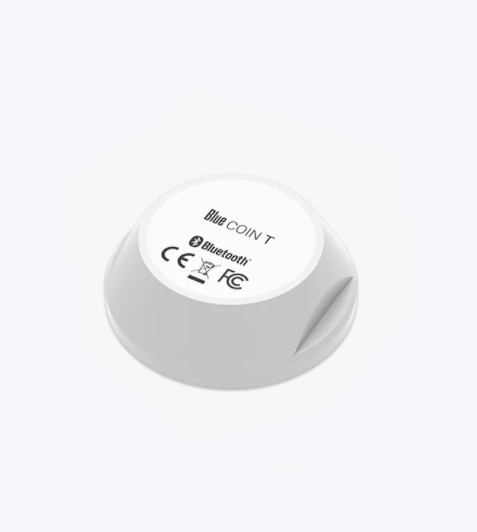

BLUE COIN T
Perfect monitoring solution for a wide use in the cold chain freezers, refrigerators and other temperature sensitive cases. Sensor uses advanced Bluetooth 4.0 LE technology to get data from long distance. It can work from internal battery up to 5 years! Its NFC chip brings flexibility and comfort in programming and proximity identification. Collected temperature information of the surrounding environment is transferred to RUTX series device, which can be send to your server or IoT platform via MQTT protocol. Router with BLE technology has possibility to support at least 200 temperature sensors at the same time!
Description
| TECHNICAL DATA | |
| Battery | Lifecycle up to 5 years |
| Bluetooth | 2,4 GHz – Bluetooth Low Energy 4.0/4.2 |
| NFC | Supported |
| Dimensions | ø 36 mm base – Thickness 11.5 mm |
| Weight | 13 g |
| Operating temperature | -30°C to +70°C |
| Ingress Protection Rating | IP68 (Waterproof) |
| Measuring range | -40°C to +85°C |
| Accuracy | ±0,25°C from -0°C to -65°C, ±0.5°C from -40°C to 85°C |
| Transmission range | Up to 200 meters (open field) |
| Transmission period | 0,1 to 10 second (programmable) |
| Regulatory | CE (Europe): EN 300 328/EN 300 330, EN 301 489, EN 62311, EN 62368 FCC (USA): FCC PART 15 ISED (Canada): RSS-247/ICES-003 RoHS certified |
