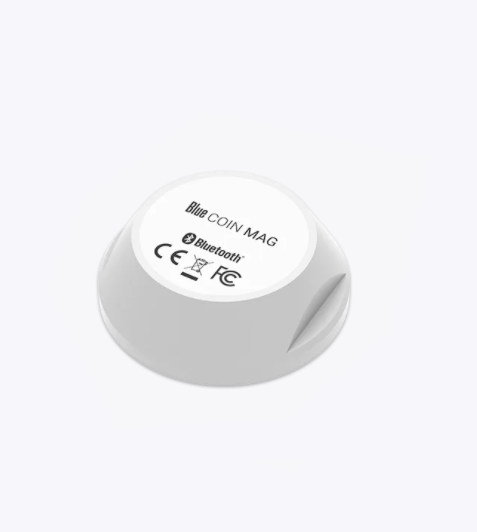

BLUE COIN MAG
Geokall IOT Networks is always focused on innovation and constantly offers new solutions to customers. Latest addition of BLE sensors extends covered business cases: doors, hood or similar objects open/close status monitoring. In combination with sensor it is necessary to use additional magnet. Sensor can send information when magnet is attached/detached. Bluetooth magnet sensors are small signal transmitters with configurable signal strength and data send intervals. Sensor uses advanced Bluetooth 4.0 LE technology to get data within 200 meters radius and can work from one battery up to 2.5 years. Geokall IOT Networks routers support at least 200 sensors at a time. Its BLE technology allows it to interface with any mobile compliant. Its NFC chip brings flexibility and comfort in programming and proximity identification. Collected data can be send to your server or IoT platform via MQTT protocol.
Description
| TECHNICAL DATA | |
| Battery | Lifecycle up to 15 months |
| Bluetooth | 2,4 GHz – Bluetooth Low Energy 4.0/4.2 |
| NFC | Supported |
| Dimensions | ø 36 mm base – Thickness 11.5 mm |
| Weight | 13 g |
| Operating temperature | -30°C to +70°C |
| Ingress Protection Rating | IP68 (Waterproof) |
| Transmission range | Up to 200 meters (open field) |
| Transmission period | 0,1 to 10 second (programmable) |
| Regulatory | CE (Europe): EN 300 328/EN 300 330, EN 301 489, EN 62311, EN 62368 FCC (USA): FCC PART 15 ISED (Canada): RSS-247/ICES-003 RoHS certified |
